C és Z profilok

Általános leírás

A Z és C profilok tűzihorganyzott acélból készült, hidegen alakított könnyű profilok. A nemesacél alapanyag magas szilárdságot és teherbírást biztosít. Ellenálló képességük és szilárdságuk révén a tetőpanelek alátámasztására, de akár az építmény tartószerkezetének felépítésére is használhatóak.

Felhasználási terület

  • tartószerkezetekben, tetőfedéseknél és nyílászáróknál másodlagos tartószerkezetként, valamint manzárd vagy további emeletek kialakításához
  • főként ipari jellegű építményeknél, pl. raktárak, gyártócsarnokok, bemutatótermek, kereskedelmi központok, farmok és egyéb különleges építmények

Előnyök

  • a szükséges méretre gyárthatók, ami az anyagveszteség lecsökkentését és az erőforrások takarékos használatát teszik lehetővé
  • a hagyományos szerkezetekhez viszonyítva könnyebbek, és magasabb teherbíró képességgel rendelkeznek
  • gyors, könnyed és precíz szerelés
  • akár 80%-kal lecsökken a kivitelezési idő és költség
  • leszerelhetőek és újrahasznosíthatóak
  • acél alapanyaga ellenáll az időjárási hatásoknak és megtartja eredeti alakját
  • magas korrózióállóság
  • a hagyományos szerkezetekhez viszonyítva jobban ellenállnak földrengés esetén.

Műszaki jellemzők

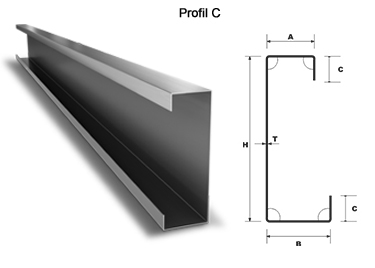

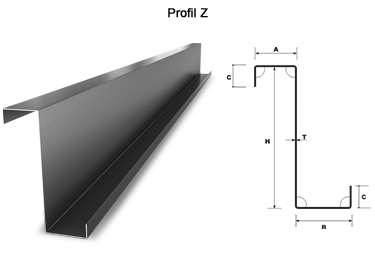

C/Z profiltípus Min./max. vastagság (mm) Magasság (mm) Min./max. súly (kg/m) A/B oldal hossza (mm) C oldal min./max. hossza (mm)
C100/Z100 1.00 - 2.00 100 1.63 - 3.23 40/47 16 - 18.3
C120/Z120 1.00 - 2.50 120 1.79 - 3.54 40/47 16 - 19.5
C150/Z150 1.00 - 2.50 150 2.02 - 5.00 40/47 16 - 19.5
C180/Z180 1.00 - 2.50 180 2.52 - 6.23 53/60 19.4 - 23
C200/Z200 1.50 - 2.50 200 4.35 - 7.21 65/72 23.6 - 26
C250/Z250 1.50 - 3.00 250 4.94 - 9.81 65/72 23.6 - 27.2
C300/Z300 2.00 - 3.00 300 7.83 - 11.68 81/88 23.8 - 26.2
C350/Z350 2.00 - 4.00 350 9.02 - 17.92 93/100 24.8 - 29.7
C400/Z400 2.00 - 4.00 400 9.81 - 19.49 93/100 24.8 - 29.7
